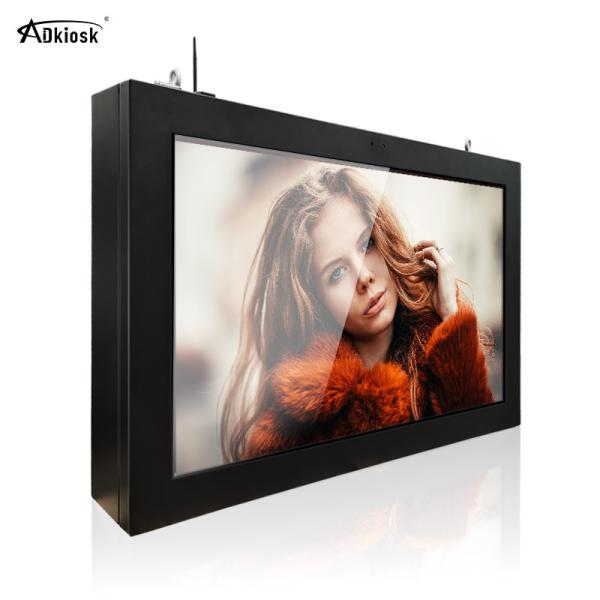

Wall Mount Ip65 Waterproof Outdoor Android Network Lcd Advertising
Outdoor Digital Signage
Specification
Display | Capacitive Touching ,TFT-LCD with led backlight |
OS | Android( RK3288/3399) , Windows( i3 /i5 /i7) |
Update | Remote control by CMS |
Display ratio | 16:9 |
Max resolution | 1920x1080P |
WIFI | Yes |
Brightness | 1500-4000 nits |
Contrast ratio | 5000:1 |
Response time | 5ms |
Dot pitch | 0.53(H)X0.53(V)mm |
Colour | 16.7M |
Viewing angle | 89/89/89/89(Min.)(CR≥10) |
Input voltage | AC 100-240V |
Temperature control | Fans cooling system / air conditioning system |
Nowadays, the application field of outdoor advertising machine is
continuously expanding, and it is deeply loved by the public in the
fields of commercial media, transportation, municipal construction,
and media. There are more and more applications. At this time,
everyone should pay more attention to the use of outdoor
advertising machines.
Note for outdoor advertising machine:
1. According to the type of the machine, such as wall-mounted or
vertical, perform construction in accordance with the installation
method.
2. Before use, read the product description carefully to determine
whether the product voltage is consistent with the local voltage.
3. Outdoor advertising players usually have a protection level of
IP65 or IP55, which fully meets the conditions of outdoor
environment use, such as waterproof, high temperature resistance,
low temperature resistance, dust resistance, high-brightness
display and so on.
4. Due to the high temperature in summer, remember not to touch the
device casing and LCD screen with your hands to avoid burning your
hands.
5. Do not install the equipment near open flames.
6. Do not cover the outside of the device with objects to avoid
heat dissipation problems and affect the operation of the device.
7. When cleaning the equipment, do not use liquid cleaners or spray
cleaners to directly wipe the surface of the housing, but use a
damp cloth to wipe.
8. When cleaning or maintaining the inside of the equipment, it
needs to be performed when the power is off.
